Technical Parameters
● Dual‑Mode Operation – Users can freely choose between vortex nitrogen evaporation or needle‑tracking nitrogen evaporation.
● Volume Range – 1.5 – 200 mL, with customizable dedicated‑size concentration tube racks available.
● Vortex Nitrogen Evaporation Mode – Configurable for constant pressure or multi‑stage programmed pressure boost.
● Needle‑Tracking Nitrogen Evaporation Mode – Nitrogen needles automatically track the descending liquid level, with programmable needle lifting/lowering speed.
● Multi‑Channel Gas Supply per Port – Ensures uniform pressure across every outlet.
● Three‑Sided Full‑View Glass Water Bath – Allows continuous observation of all samples during concentration.
● Instrument Status Indicator Lights – Displays different color lights according to operating state for instant visual clarity.
● Sample Capacity Ultra-High Throughput: Supports simultaneous concentration of up to 64 samples.
● PID Precise Pressure Control, Accuracy: ±0.5 psi, Pressure Range: 1–72.5 psi.
● PID Temperature Control Accuracy: ±0.1°C, Temperature Range: Ambient ~100°C.
● Both the concentration tube rack and water bath tank are fully coated with PTFE anti-corrosion and anti-rust technology.
● Equipped with a 10.1-inch high-definition touch screen control, fully compatible with dual-mode control interface.
● Real-time display of water bath temperature, nitrogen pressure, concentration time, etc., supports online saving and calling of concentration methods.
● Features a multi-dimensionally adjustable control terminal, allowing adjustment of height and angle according to the operator's actual needs.
● IoT Upgrade Supported – Monitor instrument operation status remotely via the DTLabs WeChat Mini Program.
● The device supports automatic simultaneous endpoint concentration for samples in the same batch and features automatic endpoint detection.
Configuration
1) 64‑position concentration main unit
2) 10.1‑inch HD color touch screen control terminal with pre‑installed control software
3) Needle‑tracking nitrogen evaporation needle assembly (8 needle ports per set)
4) Vortex‑mode nitrogen evaporation needle assembly (8 needle outlets per set)
5) 10 mL 64‑position sample tube rack (PTFE‑coated surface)
6) Spare nitrogen evaporation needles (Ø 2.0 mm), 10 pcs/pack
7) 10 mL concentration sample tubes (100 tubes/set)
8) Anti-corrosion exhaust pipe
9) Special tool kit
10) Nitrogen connector assembly
11) User Manual
12) Nitrogen-specific PU tubing
13)10ml concentration tubes, 100 tubes/box
Video
Nitrogen Concentrator
FV64UP Automatic Dual-Mode Nitrogen Concentrator
RMB Negotiable
RMB Negotiable
Product number:C04-64
ADD TO SHOPPINT CART
Description

Selects and Matches

3ml Test Tube
Price
RMB Negotiable
Model number:C1003075
5ml Test Tube
Price
RMB Negotiable
Model number:C1205075
8ml Test Tube
Price
RMB Negotiable
Model number:C1308100
10ml Test Tube
Price
RMB Negotiable
Model number:C1610100
15ml Test Tube
Price
RMB Negotiable
Model number:C1615125
30ml Test Tube
Price
RMB Negotiable
Model number:C2030150
50ml Concentration Tube
Price
RMB Negotiable
Model number:C3650150-1
Nitrogen Nozzle
Price
RMB Negotiable
Model number:CU15125
Nitrogen Nozzle
Price
RMB Negotiable
Model number:CU20125

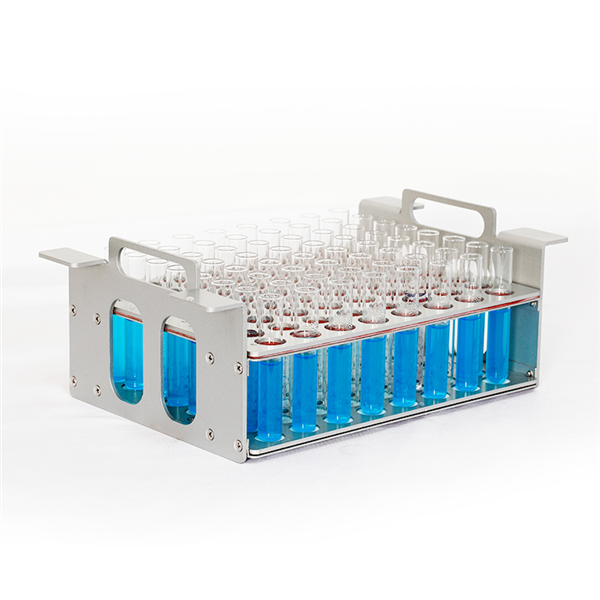

64-pos Sample Rack for 3ml Test Tube
Price
RMB Negotiable
Model number:C02-64-03
64-pos Sample Rack for 5ml Test Tube
Price
RMB Negotiable
Model number:C02-64-05
64-pos Sample Rack for 8ml Test Tube
Price
RMB Negotiable
Model number:C02-64-08
64-pos Sample Rack for 10ml Test Tube
Price
RMB Negotiable
Model number:C02-64-10
64-pos Sample Rack for 15ml Test Tube
Price
RMB Negotiable
Model number:C02-64-15
64-pos Sample Rack for 30ml Test Tube
Price
RMB Negotiable
Model number:C02-64-30
32-pos Sample Rack for 50ml Test Tube
Price
RMB Negotiable
Model number:C02-64-50
15ml Tip-bottom centrifugal tube
Price
RMB Negotiable
Model number:46-0015-100
50ml Centrifuge Tube
Price
RMB Negotiable
Model number:46-0050-100
FV64UP Automatic Dual-Mode Nitrogen Concentrator

The world's only intelligent nitrogen evaporator that integrates both vortex nitrogen evaporation and needle‑tracking nitrogen evaporation modes in one instrument. Users can freely choose the nitrogen evaporation mode based on the sample volume, solvent type, and personal usage habits. Mode switching is convenient, and the instrument can simultaneously concentrate 64 samples.
